STANDARD FLOOR DRAINS

VOGI standard series of floor drains consist of 6 different models. Every version consist a different main body construction (horizontal, vertical or horizontal double). A trap (dry or wet) and telescope with stainless steel grate.

flor drain icons.jpg

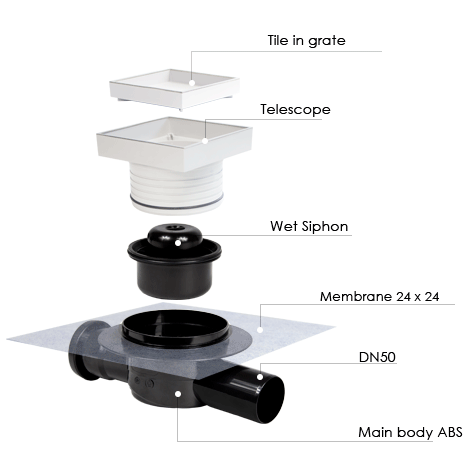

HOW THE STANDARD FLOOR DRAIN IS BUILD?


 STANDARD MODELS OF FLOOR DRAINS

  • Horizontal outlet

  • Dry siphon

  • Inox grate

X2A

  • Horizontal outlet

  • Wet siphon

  • Inox grate

X1A

  • Vertical outlet

  • Dry siphon

  • Inox grate

  • Vertical outlet

  • Wet Siphon

  • Inox grate

Y2A

Y1A

  • Horizontal double

  • Dry siphon

  • Inox grate

Z2A

  • Horizontal double

  • Wet siphon

  • Inox grate

Z1A

DIFFERENCE BETWEEN SPHONS

WET SIPHON

   DRY SIPHON

Designed for interior application where frequent use of the drain is present, such as bathrooms. As water is collected it creates natural barriers which prevent bad odours from entering the building.


Designed for use in areas where water is only present at irregular intervals such as boiler rooms, basement, garages or aoutdoors. Foul odours are stopped by the sealed flap which only opens in the moment when water is present. This type of siphon can also be used in places where temperatures fall below zero.
